PagedAttention: How vLLM Borrowed Virtual Memory to Unlock GPU Serving at Scale

The Fragmentation Problem — When Reserved Memory Lies

Every LLM serving system must answer a deceptively hard question before it generates a single token: how much memory do I allocate for the KV cache of this request?

The KV cache is not optional overhead. At inference time, each transformer layer stores key and value tensors for every token it has seen — these are the K_{1:t} and V_{1:t} slabs shown in the KV attention diagram above — so that the autoregressive decode loop can attend to the full context without recomputing it. For Llama-3-70B in BF16, a single request at context length 8K uses approximately 40 GB of KV cache across all layers (80 layers × 2 heads × 8K × 128 × 2 bytes × 2 for K and V). That figure is not small: on an 80 GB H100, a single long-context request can consume half the HBM for KV alone.

The naive solution, and the one virtually every early serving framework implemented, is static pre-allocation: at request arrival, reserve max_seq_len tokens of KV cache memory for this sequence and hold it until the sequence completes. The logic is appealing in its simplicity — no reallocation, no fragmentation, O(1) pointer arithmetic inside the attention kernel.

The reality it produces is ugly. Real user requests are not uniformly max_seq_len long. Consider a production batch profile for a code-generation endpoint:

The mean utilization in this batch is roughly 32%. The 68% of HBM that was reserved, touched briefly or not at all, and then released represents capacity that cannot be used for other live requests during those sequences’ lifetimes. In the vLLM paper (Kwon et al., arXiv:2309.06180), the authors measured this waste empirically: 60–80% of KV cache memory is wasted in naive static allocation under production traffic patterns, where request lengths follow a heavy-tailed distribution concentrated at short completions with a long tail of verbose outputs.

The knock-on effect is not merely inefficiency — it is a hard cap on batch size. If each of 32 concurrent requests occupies 83 MB of KV memory regardless of actual use, you have committed 2.6 GB of HBM before a single FP8 multiply fires. With 80 GB total and 40 GB consumed by model weights (70B × 2 bytes / 2 for TP=8 sharding), you have perhaps 20 GB for KV cache. Static allocation admits roughly 240 concurrent requests at max_seq_len=4096. The same memory managed dynamically could sustain 3× as many. The gap is not a kernel optimization problem. It is an allocation architecture problem.

The OS-Inspired Insight — Paging for the KV Cache

The solution PagedAttention borrows from is not new. Operating systems solved the analogous problem for RAM in the 1960s: virtual memory paging. A process doesn’t need its full address space resident at once. The OS maps logical pages to physical page frames on demand, maintains a page table per process, and reclaims and reassigns frames when a process releases them or when the system needs to evict.

PagedAttention applies this insight almost literally to the KV cache:

1. Fixed-size physical blocks. The KV cache is divided into fixed-size blocks, each holding the key and value tensors for a contiguous window of tokens. The default block size in vLLM is 16 tokens. For Llama-3-70B at BF16, one block for a single head stores 16 × 128 × 2 × 2 bytes = 8 KB for K and V combined; across 80 layers and 8 KV heads, one request-block is ~5 MB. These blocks occupy a pre-allocated physical block pool in HBM — fixed in total size at system startup, managed by the vLLM block allocator.

2. Block table per sequence. Each active sequence maintains a block table: a mapping from logical block index (position in the sequence) to physical block ID in the pool. Block table entry 0 maps to “the physical block holding tokens 0–15 for this sequence.” Entry 1 maps to the block holding tokens 16–31. And so on. The mapping is indirection — logical sequence space is contiguous; physical storage is scattered.

3. Dynamic allocation. Blocks are allocated on demand, one block at a time, as the sequence generates tokens. When a sequence reaches token 16, the allocator hands it a new physical block and writes its ID into block table entry 1. When the sequence finishes, all its blocks are returned to the free pool. No memory sits idle for the “headroom” between current length and max length. Waste is bounded by at most one partially-filled block per live sequence — at block size 16, worst-case waste per sequence is 15 tokens of KV storage, not 4,080.

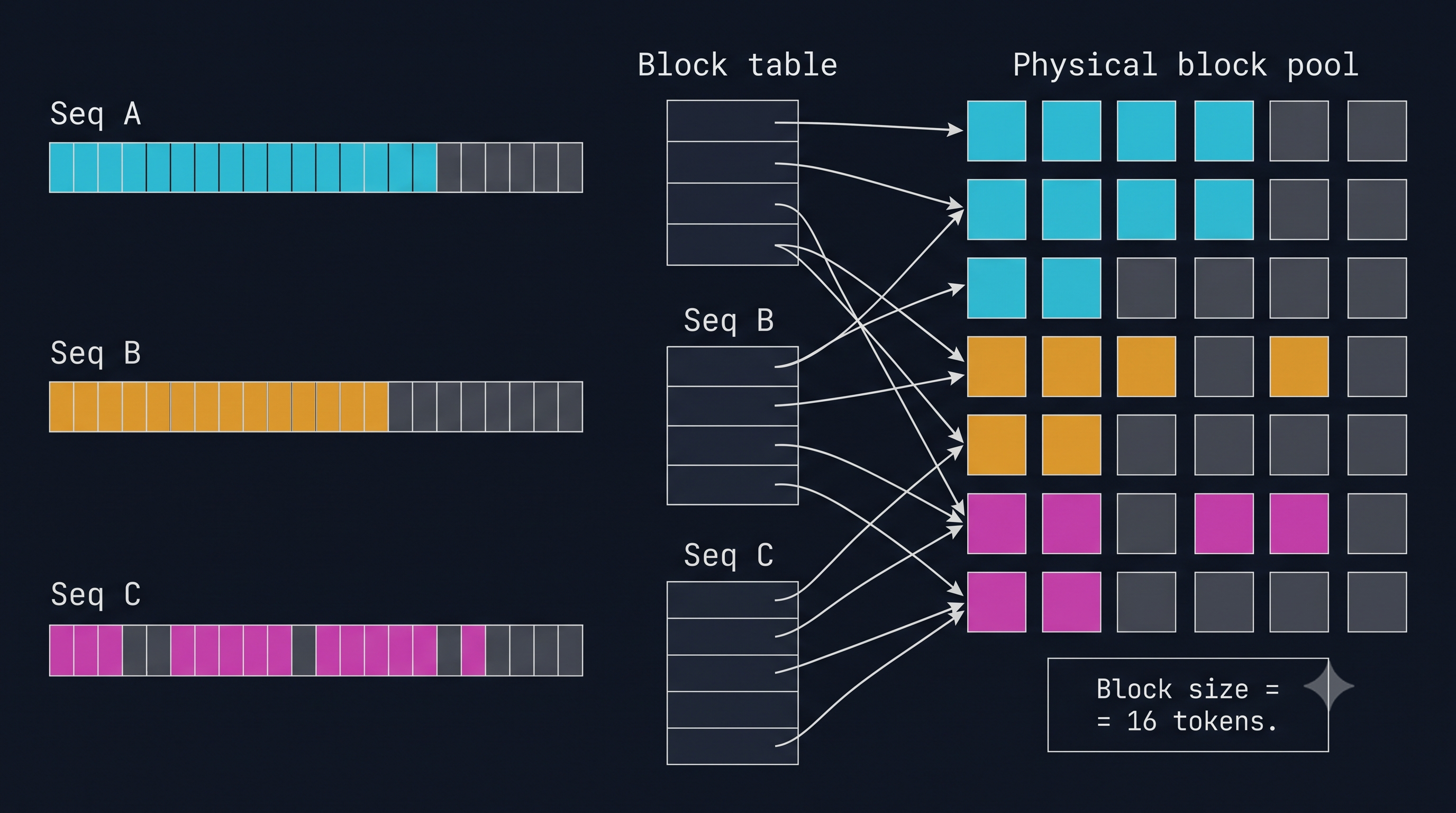

The image above showing three sequences (Seq A, Seq B, Seq C) mapping through a block table to a shared physical block pool is the exact architecture: non-contiguous physical layout, contiguous logical view per sequence.

Walking Through the Lifecycle — Prefill, Decode, Completion, and Copy-on-Write

Prefill

When a request arrives with a prompt of length P, vLLM computes ceil(P / block_size) blocks required and allocates them from the free pool. The prefill pass — which processes all prompt tokens in one forward pass — writes KV tensors into these blocks sequentially. The block table is populated as each block fills. Because the prefill processes tokens in large chunks, it is compute-bound rather than memory-bound; the block allocation overhead is negligible relative to the matmul time.

Decode

Each decode step generates one new token. The KV tensor for that token is appended to the sequence’s most recently allocated block. If that block is now full (i.e., the new token’s position modulo 16 equals 0), the allocator provisions a new physical block and appends its ID to the block table. The decode CUDA kernel receives the current block table and the physical block pool base pointer and must gather KV data from non-contiguous addresses — a requirement that renders standard attention kernels inapplicable, which we address in the next section.

Sequence Completion

When the model emits an EOS token or the sequence hits max_new_tokens, all physical blocks referenced in the block table are returned to the free pool atomically. The allocator can immediately redistribute them to waiting requests. This is what makes PagedAttention’s throughput advantage concrete: a batch of 32 sequences at heterogeneous lengths releases blocks asynchronously as each finishes, continually freeing memory for new arrivals rather than holding the entire max_seq_len allocation until the last token.

Copy-on-Write for Beam Search and Parallel Sampling

Beam search and parallel sampling (generating N candidates from one prompt) require branching: multiple continuations share the same prompt KV cache but diverge from some point onward. With static allocation, each candidate gets its own copy of the prompt KV tensors — wasteful when the prompt is long and the candidates are numerous.

PagedAttention handles this with copy-on-write (CoW) semantics. When a sequence forks into N beams, the N child sequences initially share physical blocks for the prompt region via reference counts in the block allocator. Every block that is shared has ref_count > 1. When a child sequence needs to write to a shared block (during its first decode step past the fork point), the allocator detects ref_count > 1, allocates a new physical block, copies the content, decrements the original’s ref_count, and gives the child its own private copy. Blocks that are still being shared (prompt blocks that none of the children have written past) are never copied. For a 2048-token prompt generating 4 beams with 512-token extensions, the savings are substantial: ~80% of the KV memory for the prompt is shared across all four beams rather than replicated.

The Custom CUDA Kernel — Why Standard Attention Cannot Handle This

Standard flash attention implementations, including Dao et al.’s flash_attn_2_func, assume that the KV cache for a sequence is stored in a contiguous tensor with shape [seq_len, num_heads, head_dim]. The attention kernel iterates over K and V slices using pointer arithmetic that assumes a uniform stride between tokens. This assumption breaks completely when physical blocks are scattered across the HBM address space.

vLLM’s paged_attention_v2 kernel (found in csrc/attention/attention_kernels.cu) implements a gather-scatter attention that is aware of the block table structure. The kernel signature accepts:

• query: the query tensor for the current decode step, shape [batch, heads, head_dim]
• key_cache, value_cache: the physical block pool, shape [num_blocks, num_heads, block_size, head_dim] — a 4D tensor where the outermost dimension is the block ID
• block_tables: per-sequence block ID arrays, shape [batch, max_blocks_per_seq]
• context_lens: actual sequence lengths per request

The kernel partitions across warps by query head and across thread blocks by sequence. For each sequence, it iterates over logical block indices, loads the corresponding physical block ID from block_tables, and uses it to index into key_cache and value_cache. This is a gather: the hardware issues non-coalesced loads from physically scattered addresses. The memory access pattern is irregular relative to what tensor-core attention prefers.

To manage this, paged_attention_v2 uses a two-pass reduction — analogous to the online softmax in Flash Attention — but extended to operate over blocks: it computes partial attention outputs and softmax denominators for each block independently, then reduces across blocks with a numerically stable merge. Intermediate partial outputs are staged in shared memory per SM. The block size of 16 tokens is chosen specifically to fit K and V for one block into SRAM without exceeding the 228 KB budget while keeping the gather penalty bounded.

The kernel is not as efficient as contiguous flash attention at identical sequence lengths — the non-coalesced gather introduces L2 pressure. But the relevant comparison is not “PagedAttention vs. flash attention on a single sequence”; it is “PagedAttention on a batch of 256 sequences vs. static-allocation flash attention on a batch of 64 sequences.” At system scale, the larger batch more than compensates for the per-request gather overhead.

Throughput Numbers — What the Paper Actually Shows

The vLLM paper (Kwon et al., 2309.06180) benchmarks against FasterTransformer and Orca across three serving scenarios on an A100 (the H100 story is even stronger due to higher HBM bandwidth).

At high request rates (arrival rate close to system capacity), vLLM achieves 2–4× higher throughput than the static-allocation baselines in terms of requests completed per second. The gain is largest when:

• Request length variance is high (mixed short and long requests), which maximizes the fragmentation penalty on static allocation.
• The model is large enough that KV cache competes meaningfully with weight storage for HBM (70B range).
• Continuous batching is paired with PagedAttention — the two interact synergistically, because continuous batching can only slot new requests into the batch when memory is available, and PagedAttention maximizes the speed at which memory becomes available post-completion.

At low request rates, where the system is underloaded and static allocation wastes memory that would have been idle anyway, the advantage shrinks toward 1×. PagedAttention does not help a system that isn’t memory-constrained — it specifically addresses the constraint.

The authors also show that preemption frequency (how often the scheduler must evict active sequences to free memory for new arrivals) drops dramatically with PagedAttention. Static allocators preempt roughly 8× more often under moderate load because they cannot reclaim partial sequence memory. Each preemption re-incurs prefill compute on the re-admitted sequence, wasting GPU cycles. PagedAttention reduces preemption to near zero at equivalent throughput.

Where PagedAttention Stops Helping

PagedAttention is a memory allocation optimization, and it helps where memory is the binding constraint. It does not help — and can mildly hurt — in several scenarios.

Single-sequence, latency-critical workloads. A single active request with a short prompt and short target length is not memory-bound. It is compute-bound at the prefill and memory-bandwidth-bound at decode. PagedAttention adds one indirection per decode step (the block table lookup) and one potential cache miss per block boundary. At batch size 1, the throughput advantage is 1× — you are not running more requests, so the freed memory serves no one. The gather overhead of paged_attention_v2 versus contiguous flash attention represents a small but real regression on TTFT (time-to-first-token) compared to a system that keeps the KV cache contiguous.

Block size mistuning. If block_size is too small (e.g., 4 tokens), the number of block table entries per sequence grows, the gather loop in the kernel iterates more times, and the overhead of block allocation and block table management rises. If block_size is too large (e.g., 256 tokens), the last block of each sequence is mostly empty — you have effectively re-introduced the fragmentation problem at coarser granularity. The vLLM default of 16 tokens is a reasonable empirical sweet spot for most transformer configurations, but it is not universally optimal: very long sequences at small head dimensions may benefit from larger blocks to reduce gather overhead, while high-concurrency short-completion workloads may prefer smaller blocks to minimize tail waste.

Memory-bandwidth saturation at small models. For a 7B model on a single H100, the weights occupy ~14 GB in FP8, leaving 66 GB for KV cache. At this ratio, even static allocation can service a large batch without fragmentation becoming critical. PagedAttention’s overhead relative to contiguous flash attention may produce net-negative results at very small model sizes and very large HBM headroom.

The Successors — SGLang’s RadixAttention and Prefix Sharing

PagedAttention solves fragmentation within a request’s KV cache. It does not address a related inefficiency: redundant prefill across requests that share a common prefix. In production serving, system prompts, few-shot examples, and RAG retrieved contexts appear identically at the beginning of thousands of requests per minute. With basic PagedAttention, each new request re-runs the prefill computation for the system prompt, even though the resulting KV tensors are identical to those computed for the previous request.

SGLang’s RadixAttention (Zheng et al., arXiv:2312.07104) extends the PagedAttention block table with a radix tree (trie) indexed by token sequence content. When a new request arrives, RadixAttention looks up its prompt tokens in the radix tree and identifies the longest cached prefix — a sequence of physical blocks whose KV content was computed by a prior request with the same leading tokens. Those blocks are shared by reference (with copy-on-write semantics, as in beam search) rather than re-computed. The prefill cost for the shared prefix drops to zero; only the suffix novel to this request requires computation.

The implications for throughput are significant in chatbot and RAG workloads. The SGLang paper reports up to 5× lower TTFT on benchmarks where requests share long system prompts (e.g., agent frameworks with multi-thousand-token instruction prefixes). The memory savings compound the compute savings: instead of N copies of identical KV blocks for N requests, the radix tree keeps one copy shared across all N, freeing blocks for new distinct content.

RadixAttention’s limitation is the eviction policy. The radix tree can grow without bound if every request has a unique prefix; the block allocator must implement an LRU or FIFO eviction policy over trie nodes, and eviction causes a cache miss on the next similar request. The optimal policy is workload-dependent — a chatbot with a fixed system prompt and many users benefits enormously; a code-completion endpoint where every prompt is unique benefits not at all.

Chunked prefill, introduced in vLLM v0.3 and later adopted by SGLang, is a complementary mechanism: rather than processing the full prefill in one monolithic forward pass (which can block decode steps for hundreds of milliseconds on long prompts), the prefill is broken into chunks of fixed token count interleaved with decode steps. This reduces TTFT variance without changing the KV allocation scheme.

Synthesis

PagedAttention’s conceptual contribution is one sentence: stop treating the KV cache as a contiguous tensor; treat it as a paged virtual address space. The implementation consequences of that sentence cascade through the entire serving stack — the block allocator, the block table per sequence, the copy-on-write protocol for beam search, and the gather-aware CUDA attention kernel.

The result is a 2–4× throughput multiplier at production scale, not because the kernel is faster but because the system can run 2–4× more concurrent sequences for the same HBM budget. The gains disappear at low concurrency and can become small negatives at extreme latency sensitivity — PagedAttention is a system-level optimization, not a kernel-level one, and its value is unlocked only by the batch sizes it enables.

SGLang’s RadixAttention takes the abstraction one level further: the block table is no longer per-request but global, indexed by content, enabling cross-request KV reuse that is the serving equivalent of a shared library in virtual memory. The direction of travel is clear — toward a model of GPU memory management that is as sophisticated as OS virtual memory, with demand paging, sharing, copy-on-write, and content-addressed caches layered into the serving runtime.

The KV cache is not an implementation detail. It is the memory hierarchy problem of LLM inference, and PagedAttention is its first correct solution.

References

• Kwon, W., Li, Z., Zhuang, S., Sheng, Y., Zheng, L., Yu, C. H., Gonzalez, J. E., Zhang, H., & Stoica, I. (2023). Efficient Memory Management for Large Language Model Serving with PagedAttention. arXiv:2309.06180.
• Zheng, L., Yin, L., Xie, Z., Huang, J., Sun, C., Yu, C. H., Cao, S., Kozyrakis, C., Stoica, I., & Gonzalez, J. E. (2023). Efficient LLM Inference with SGLang. arXiv:2312.07104.
• Dao, T., Fu, D. Y., Ermon, S., Rudra, A., & Ré, C. (2022). FlashAttention: Fast and Memory-Efficient Exact Attention with IO-Awareness. arXiv:2205.14135.
• NVIDIA. (2022). NVIDIA H100 Tensor Core GPU Architecture (whitepaper).
